 Post subject: oil pressure relief valve
PostPosted: Tue May 03, 2016 7:51 pm
Offline
User avatar

Joined: Sat Oct 02, 2010 2:02 pm
Posts: 138
Location: Falkirk
TIPEC membership: 0
hi all

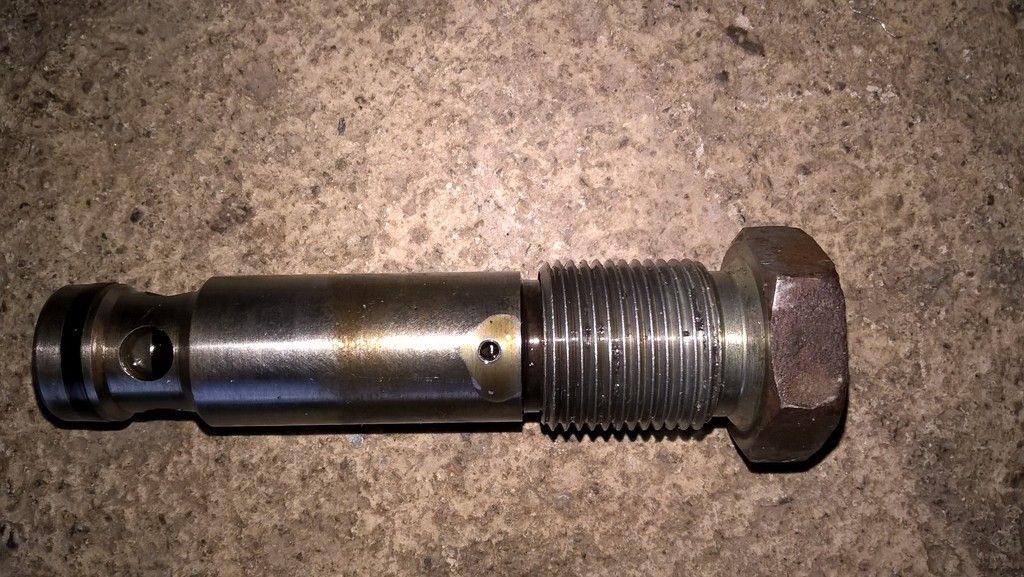

I've replaced my oil cooler seals and was just about to put the OPRV back in and noticed the seal ring on the end looks a bit flat

is it meant to sit flush like this or does it need replaced ?

[urlImage][/url]

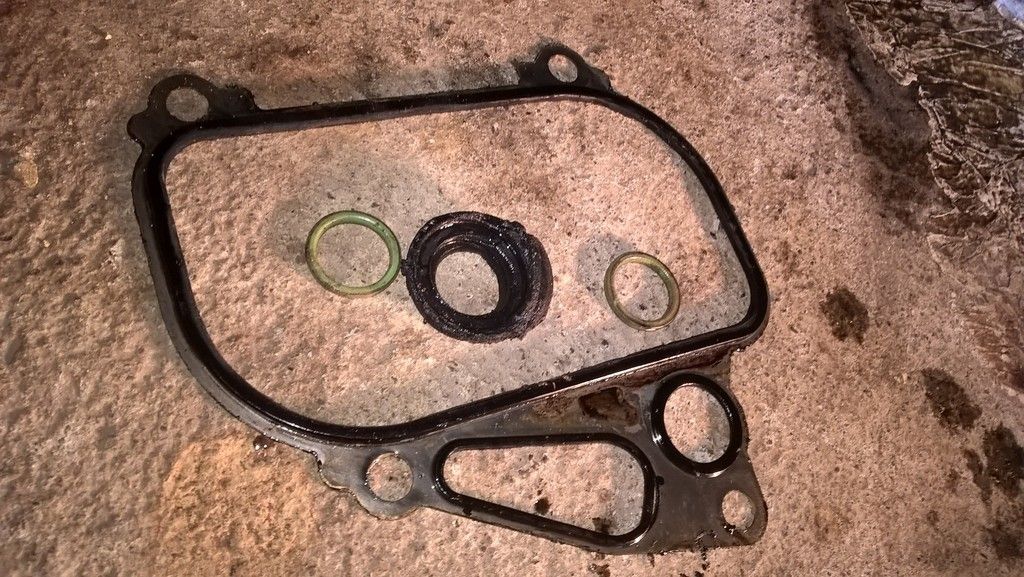

before

[url][URL=http://s1266.photobucket.com/user/shep731/media/WP_20160503_15_15_33_Pro_zpsqnxf5cmh.jpg.html]Image[/url][/url]

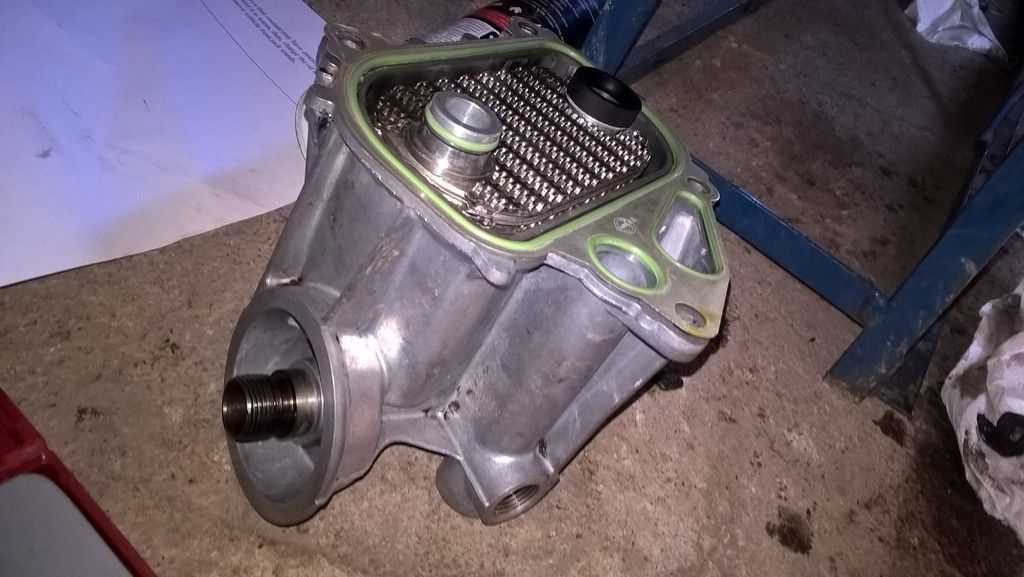

after

[url][URL=http://s1266.photobucket.com/user/shep731/media/WP_20160503_15_14_54_Pro_zpsfqjfv0tj.jpg.html]Image[/url][/url]

big thanks to Prophead for a loan of the alignment tool :D

Brian

_________________
1987 alpine white lux
2011 Honda CR-Z Hybrid
*empty space where a corrado should be*


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Tue May 03, 2016 8:02 pm
Offline

Joined: Mon Jan 02, 2012 2:58 pm
Posts: 807
Location: cape town SA
TIPEC membership: 0
Hi Brian -

Does look a bit flat to me - worth replacing I would have thought, having gone the effort you have to replace the other items...

Dave


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Tue May 03, 2016 8:39 pm
Offline
User avatar

Joined: Sat Oct 02, 2010 2:02 pm
Posts: 138
Location: Falkirk
TIPEC membership: 0
Hi Dave

thats what I was thinking. On checking the PET diagram its described as a sealing ring rather than an o ring

might order one up anyway as I want to replace the washers for the OPRV and oil pressure sender

Cheers

Brian

_________________
1987 alpine white lux
2011 Honda CR-Z Hybrid
*empty space where a corrado should be*


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Tue May 03, 2016 8:44 pm
Offline

Joined: Mon Jan 02, 2012 2:58 pm
Posts: 807
Location: cape town SA
TIPEC membership: 0
If in doubt - replace!

Dave


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Wed May 04, 2016 10:46 am
Offline
User avatar

Joined: Fri Jun 12, 2015 4:02 pm
Posts: 574
TIPEC membership: 7406
shep73 wrote:
Hi Dave

thats what I was thinking. On checking the PET diagram its described as a sealing ring rather than an o ring

might order one up anyway as I want to replace the washers for the OPRV and oil pressure sender

Cheers

Brian

Best plan really, they are basically pence to replace so worth the piece of mind. The new O ring seal will be green not black in case you think you have the wrong one.

_________________
924 1981 GTv8 Bonkers V8 conversion trackday car.
https://www.facebook.com/theleatherbuff
https://www.theleatherbuff.co.uk/


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Wed May 04, 2016 12:58 pm
Offline

Joined: Tue Nov 19, 2013 10:48 am
Posts: 2736
Location: West Essex
TIPEC membership: 0
If it's rubber or nitrile and original replace it, enough said

_________________
1992 968 Coupe Cobalt Blue
1985 Honda VF1000 F2 Bol D'or In Silver
2013 A4 177 TDI Quattro Ibis White
2013 Volvo XC60 D5 brilliant car


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Wed May 04, 2016 7:49 pm
Offline
User avatar

Joined: Sat Oct 02, 2010 2:02 pm
Posts: 138
Location: Falkirk
TIPEC membership: 0
thanks for the replies

am I right in thinking there is just one seal to replace the flat black one at the narrow end of the valve, the PET diagram seems to show two ?

cheers

Brian

_________________
1987 alpine white lux
2011 Honda CR-Z Hybrid
*empty space where a corrado should be*


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Wed May 04, 2016 9:41 pm
Offline
User avatar

Joined: Fri Jun 12, 2015 4:02 pm
Posts: 574
TIPEC membership: 7406
[quote="shep73"]thanks for the replies

am I right in thinking there is just one seal to replace the flat black one at the narrow end of the valve, the PET diagram seems to show two ?

cheers

Brian[/quo
there is an o ring inside the valve as well but is a real pig to get to, tinny little clip at the end of the OPRV needs to come out to get it apart. I didnt risk it with mine as bound to lose the clip. Test the valve by pushing the end in with flat punch or similar, it will squirt any remaining oil out the side holes, then check it is moving freely in and out on the internal spring and not catching.

_________________
924 1981 GTv8 Bonkers V8 conversion trackday car.
https://www.facebook.com/theleatherbuff
https://www.theleatherbuff.co.uk/


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Thu May 05, 2016 9:00 pm
Offline
User avatar

Joined: Sat Oct 02, 2010 2:02 pm
Posts: 138
Location: Falkirk
TIPEC membership: 0
Thanks Prophead

it moves in and out and squirts - that sounds like it should be on a different forum :shock:

ordering up some new bits tomorrow, the guys at glasgow OPC are going to love me 10 washers, 8 bolts, 6 nuts, a couple of o rings..... oh and a brake pad fixing kit :bom:

Brian

_________________
1987 alpine white lux
2011 Honda CR-Z Hybrid
*empty space where a corrado should be*


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Sat May 07, 2016 8:38 am
Offline
User avatar

Joined: Fri Jun 12, 2015 4:02 pm
Posts: 574
TIPEC membership: 7406
shep73 wrote:
Thanks Prophead

it moves in and out and squirts - that sounds like it should be on a different forum :shock:

ordering up some new bits tomorrow, the guys at glasgow OPC are going to love me 10 washers, 8 bolts, 6 nuts, a couple of o rings..... oh and a brake pad fixing kit :bom:

Brian

It's OK, OPC Glasgow are used to it from me lol

_________________
924 1981 GTv8 Bonkers V8 conversion trackday car.
https://www.facebook.com/theleatherbuff
https://www.theleatherbuff.co.uk/


Top
 Profile
Reply with quote
 Post subject: Re: oil pressure relief valve
PostPosted: Sat May 07, 2016 8:43 am
Offline

Joined: Sun Aug 09, 2015 8:34 am
Posts: 531
Location: Peterborough
TIPEC membership: 7496
shep73 wrote:
Thanks Prophead

it moves in and out and squirts - that sounds like it should be on a different forum :shock:

ordering up some new bits tomorrow, the guys at glasgow OPC are going to love me 10 washers, 8 bolts, 6 nuts, a couple of o rings..... oh and a brake pad fixing kit :bom:

Brian


That's the best belly laugh I've had in a while! :lol: :lol: :lol:
