 Post subject: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 5:07 pm
Offline
User avatar

Joined: Sat Jan 25, 2014 7:22 pm
Posts: 548
Location: Wimborne
TIPEC membership: 7458
I'm finally getting round to sorting out my missing fog/driving lights on the S2 ...

Am I correct in thinking there should be a rocker switch on the console to switch them?? The fog element is switched by a rocker on the RHS of the steering column, but I can't see anything other than a spare loom spur (3 wire) under the console..

Whaddya think??

G

_________________
'89 944 S2 Cabriolet
Aprilia "Falcuono" road weapon, KTM LC4 400E Desert Special for desert adventures, an RD350LC nostalgia generator and an RG500 mortgage extender.


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 5:23 pm
Offline

Joined: Mon Aug 23, 2010 6:58 am
Posts: 701
Location: Yateley, Hampshire.
TIPEC membership: 6489
What "driving lights" are you referring to? On the front, the S2 has

* headlamps in the popups (controlled by the main light switch in position 2)
* side lights / parking lights (controlled by the main light switch in position 1)
* front fog-lights controlled by the switch to the right of the steering column
* "the other two" which are used for flashing (when the popups are down) and also come on in conjunction with main beam in the popups. They're not individually switchable.

Oh... and of course front indicators ;)

_________________
Glenn
944 S2 ("Trigger")
944 2.7 road-legal track-day car ("Doris") [Sold]


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 6:45 pm
Offline
User avatar

Joined: Sat Jan 25, 2014 7:22 pm
Posts: 548
Location: Wimborne
TIPEC membership: 7458
I think it will be the other one of 'the other two' ... I thought that the main-beam (driving) function of the lower light unit was switchable...

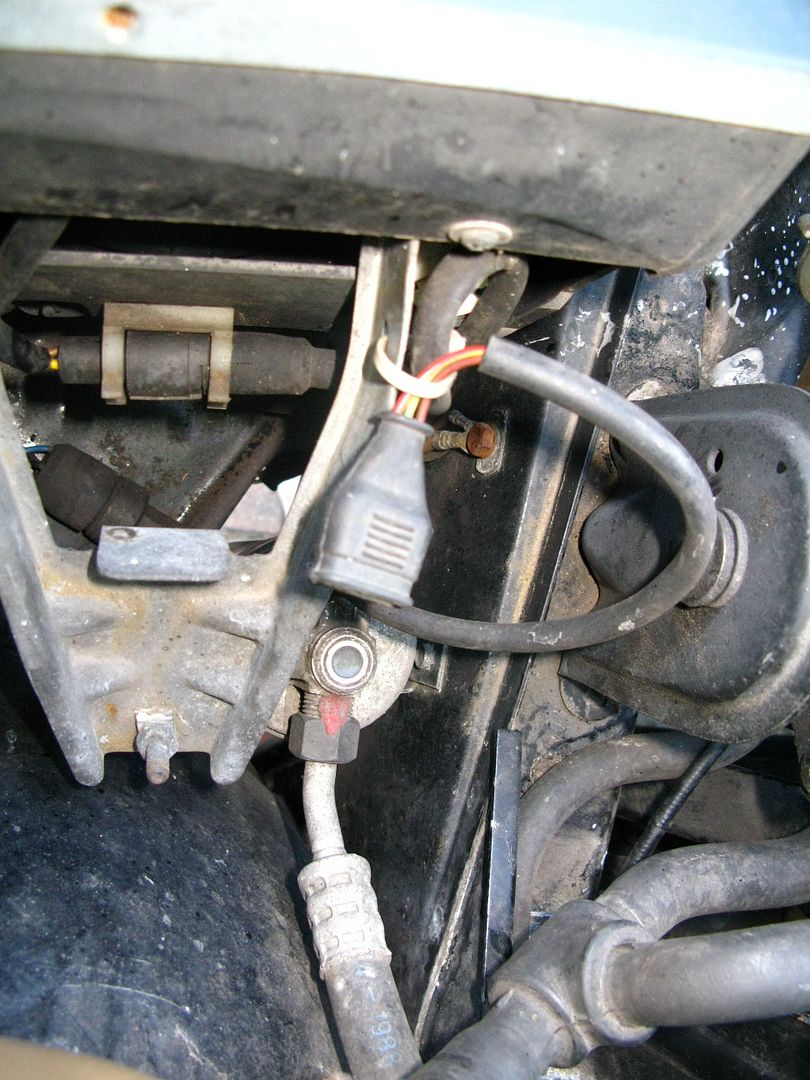

Ok, so part two of the question - behind my headlight I've got a 3 cable connector zip tied to each lamp cage. Pins 1 and 3 (the outer pins) have 12v between then, the inner pin appears to be inert. Anyone have any idea what this is for?

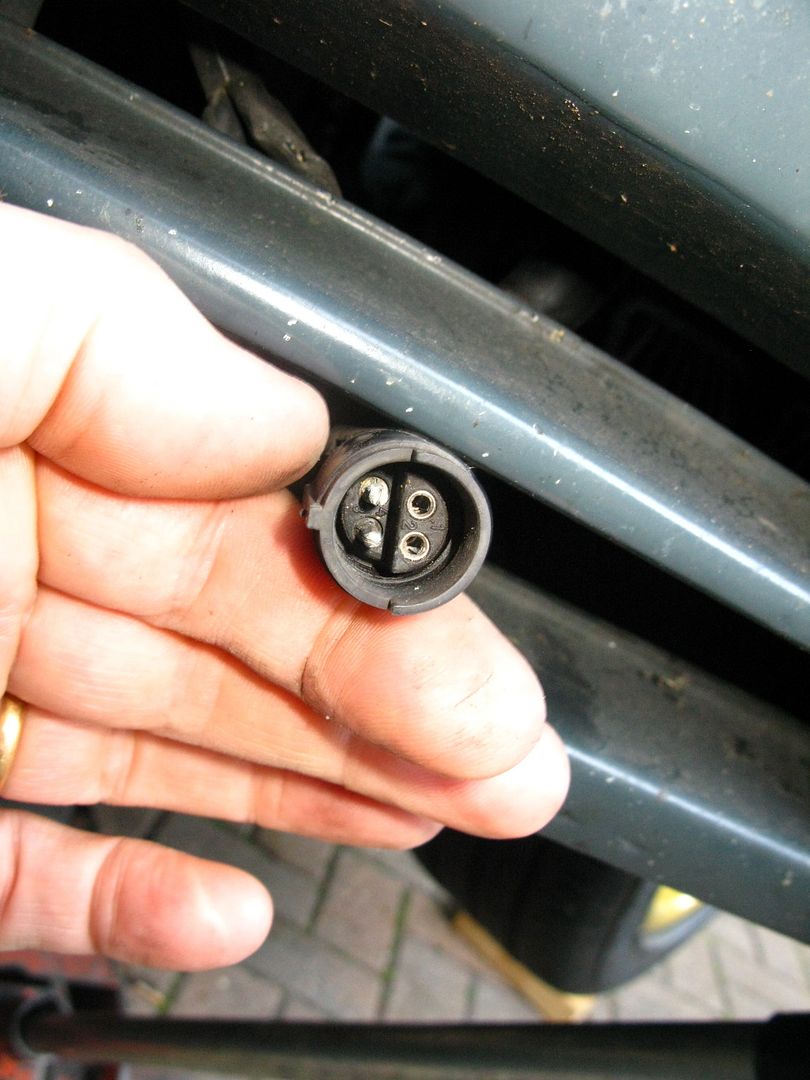

also, in trying to identify the connections for the fog/driving lamp, I've found a four pin circular plug - testing the female bits give me 12v potential, but I can't get anything between the two male bits - am I doing it wrong?


_________________
'89 944 S2 Cabriolet
Aprilia "Falcuono" road weapon, KTM LC4 400E Desert Special for desert adventures, an RD350LC nostalgia generator and an RG500 mortgage extender.


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 6:56 pm
Offline

Joined: Fri Nov 05, 2010 10:55 pm
Posts: 1138
TIPEC membership: 6926
the cable tied plug is for the headlight height adjustable motor :D


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 8:21 pm
Offline

Joined: Mon Aug 23, 2010 6:58 am
Posts: 701
Location: Yateley, Hampshire.
TIPEC membership: 6489
Quote:
I thought that the main-beam (driving) function of the lower light unit was switchable...


Not on an S2. I've heard rumour of it being so on early cars.

kongsodoken wrote:
the cable tied plug is for the headlight height adjustable motor :D


Yup. What he said :)

_________________
Glenn
944 S2 ("Trigger")
944 2.7 road-legal track-day car ("Doris") [Sold]


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Sun Jul 19, 2015 9:55 pm
Offline
User avatar

Joined: Sat Jan 25, 2014 7:22 pm
Posts: 548
Location: Wimborne
TIPEC membership: 7458
ok .. so in the lower light unit there's the foglamp, a non switchable main beam and a pilot or side light?

I guess that as the round plug has 4 terminals, if there's one ground then the other three correlate as above??

Just as a side thought - my '82 924 had a switchable secondary driving light on main-beam...

_________________
'89 944 S2 Cabriolet
Aprilia "Falcuono" road weapon, KTM LC4 400E Desert Special for desert adventures, an RD350LC nostalgia generator and an RG500 mortgage extender.


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Mon Jul 20, 2015 6:24 am
Offline

Joined: Mon Aug 23, 2010 6:58 am
Posts: 701
Location: Yateley, Hampshire.
TIPEC membership: 6489
Greggers wrote:
ok .. so in the lower light unit there's the foglamp, a non switchable main beam and a pilot or side light?


Correct.

Greggers wrote:
I guess that as the round plug has 4 terminals, if there's one ground then the other three correlate as above??


That seems a reasonable assumption.

Greggers wrote:
Just as a side thought - my '82 924 had a switchable secondary driving light on main-beam...


Yes. I have heard that's also the case for pre-model year '86 944s too (the "square dash cars") which carried over many things from 924s. Neither my '89 2.7 or my S2 has any provision for individually switching the third lamp in the combination light unit.

_________________
Glenn
944 S2 ("Trigger")
944 2.7 road-legal track-day car ("Doris") [Sold]


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Mon Jul 20, 2015 11:18 am
Offline

Joined: Tue Sep 23, 2008 6:18 pm
Posts: 1955
Location: Sheffield: Rome of the North!
TIPEC membership: 0
Yes, the driving lamps were switchable on 924s and series one 944s. The switch wasn't included in the series two 944 and it wasn't added for the Turbo (and S2) body either.

_________________
Simon On The Edge..... In The Hedge!

1988 944 Turbo - the Pink Pig
1989 944 2.7
1985 944 It's alive!
1986 944 Automatic


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Mon Jul 20, 2015 5:18 pm
Offline
User avatar

Joined: Sat Jan 25, 2014 7:22 pm
Posts: 548
Location: Wimborne
TIPEC membership: 7458
I'll get the soldering iron out then ..

Cheers

G

_________________
'89 944 S2 Cabriolet
Aprilia "Falcuono" road weapon, KTM LC4 400E Desert Special for desert adventures, an RD350LC nostalgia generator and an RG500 mortgage extender.


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Tue Jul 21, 2015 9:34 am
Offline

Joined: Tue Sep 23, 2008 6:18 pm
Posts: 1955
Location: Sheffield: Rome of the North!
TIPEC membership: 0
Are you going to add a control switch for the PU-mounted driving lights? I always preferred the control that earlier cars offered, but the lights are so poor that you need all of the help that you can get when driving at night.

_________________
Simon On The Edge..... In The Hedge!

1988 944 Turbo - the Pink Pig
1989 944 2.7
1985 944 It's alive!
1986 944 Automatic


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Tue Jul 21, 2015 9:39 am
Offline

Joined: Tue Oct 08, 2013 8:36 pm
Posts: 609
Location: Suffolk
TIPEC membership: 0
944 Man wrote:
........... but the lights are so poor that you need all of the help that you can get when driving at night.


That is so true! Even my wife's Renault Scenic has lights that outperform the 944...how lighting technology has progressed... :wink:

_________________
Porsche - accept no substitute
Black 1988 944S - Ongoing project
Blue 1999 Boxster - Brief encounter!
Black 1987 944S - Gone but not forgotten
Metallic Black 1980 924 - Those were the days....
Red 1979 924
Minerva blue 1979 924


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Tue Jul 21, 2015 1:23 pm
Offline

Joined: Fri Apr 03, 2015 2:33 pm
Posts: 114
Location: Somerset
TIPEC membership: 8681
944 Man wrote:
I always preferred the control that earlier cars offered

Can you clarify that please - on my '84 car, the switch on the centre console only seems to illuminate the high beam warning light between the speedo and the rev counter ! But then again, the headlight flasher doesn't always seem to work - maybe the faults are connected. How are the switches supposed to operate (the car does have foglights as well) ?

_________________
If it ain't fuel then it'll be sparks, except when it ain't sparks, in which case it'll be fuel.
-----------------------------------
1959 Austin Healey 3000 Mk 1
1985 Porsche 944
1999 Massey Ferguson 4225
2018 Fiat 124 Spider


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Wed Jul 22, 2015 5:30 pm
Offline

Joined: Tue Sep 23, 2008 6:18 pm
Posts: 1955
Location: Sheffield: Rome of the North!
TIPEC membership: 0
Sounds like an earth problem (behind the centre console or on the bulkhead). The switch should toggle on and off the driving lights in the bumper. They come on with high beam and go off on dip, when activated. All series ones and 924s had the switch, but the second blue tell tale is not always present.

_________________
Simon On The Edge..... In The Hedge!

1988 944 Turbo - the Pink Pig
1989 944 2.7
1985 944 It's alive!
1986 944 Automatic


Last edited by 944 Man on Thu Jul 23, 2015 5:34 pm, edited 1 time in total.

Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Wed Jul 22, 2015 8:13 pm
Offline

Joined: Mon Jan 02, 2012 2:58 pm
Posts: 807
Location: cape town SA
TIPEC membership: 0
Hi Folks -

Me also an S2 driver - the 'bad' lighting experienced is, in my opinion, the alignment between the low/high beam on the drive (pop-up) headlights, coupled with the lower pod spots (on high beam). If you can get the sync correct (not easy), you should come right. Changing the drive bulbs ie H4 and H2 to more modern specs (I went with Hella's) does improve the situation...

I never drive (low light) without the front fogs on (no rear fogs wired...) until I need to switch the mains on etc...

Dave
SA


Top
 Profile
Reply with quote
 Post subject: Re: S2 Driving light switch...??
PostPosted: Wed Jul 22, 2015 8:43 pm
Offline

Joined: Fri Apr 03, 2015 2:33 pm
Posts: 114
Location: Somerset
TIPEC membership: 8681
944 Man wrote:
Sounds like an earth problem (behind the centre console or on the bulkhead). The switch should toggle on an off the driving lights in the bumper. They come one with high beam and go off on dip, when activated. All series one and 924s had the switch, but the second blue tell tale is not always present.

Thanks - will investigate further at the weekend.

_________________
If it ain't fuel then it'll be sparks, except when it ain't sparks, in which case it'll be fuel.
-----------------------------------
1959 Austin Healey 3000 Mk 1
1985 Porsche 944
1999 Massey Ferguson 4225
2018 Fiat 124 Spider


Top
 Profile
Reply with quote
